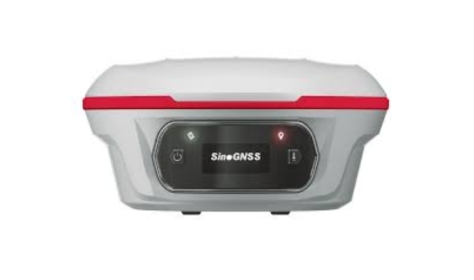

GPS Geodetik RTK Comnav Sino Jupiter Laser

Category: GPS Geodetik / RTK Brand: SinoGNSS

Channel

1668
Satellites tracking

GPS: L1C/A, L1C, L2P, L2C, L5
BDS: B1l, B2l, B3l, B1C, B2a, B2b
GLONASS: L1, L2, L3
Galileo: E1, E5a, E5b, E6c, E5 AItBOC
QZSS: L1C/A, L2C, L5, L1C
IRNSS: L5
SBAS: L1C/A
PPP: B2b & HAS
L-Band
Signal Re-acquisition

≤1s
Cold Start

≤30s
Hot start

≤10s
RTK Initialization Time

<5s(Baseline≤10km)
Initialization Reliability

≥99.9%
Data Update Rate

1Hz, 2Hz, 5Hz, 10Hz, 20Hz
Static and Fast Static

Horizontal 2.5 mm + 0.5 ppm RMS
Vertical 5 mm + 0.5 ppm RMS
Long Observations Static

Horizontal 3.0 mm + 0.1 ppm RMS
Vertical 3.5 mm + 0.4 ppm RMS
Single Baseline RTK

Horizontal 8mm + 1ppm RMS
Vertical 15mm + 1ppm RMS
DGPS

＜0.4m RMS
SBAS

Horizontal 0.5m RMS
Vertical 0.8m RMS
Standalone

1.5m 3D RMS
Laser Tilt Measurement

≤3.5cm (5m range, ≤60°Tilt in laser mode)
